openssl-ext-sm2

介绍

基于openssl密码库编写的SM2椭圆曲线公钥密码算法PHP扩展

特性：非对称加密

git地址：https://gitee.com/state-secret-series/openssl-ext-sm2.git

软件架构

zend 常规PHP扩展结构

依赖要求

1，liunx :openssl/lib必须包含 libcrypto.so和libssl.so 动态库

2，mac :openssl/lib必须包含 libcrypto.dylib和libssl.dylib 动态库

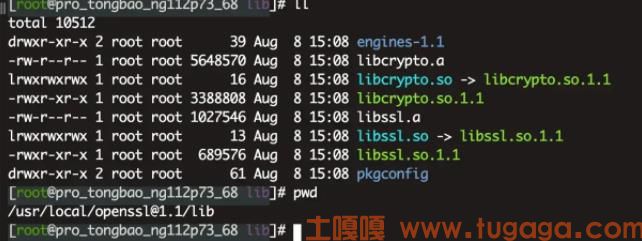

例：liunx

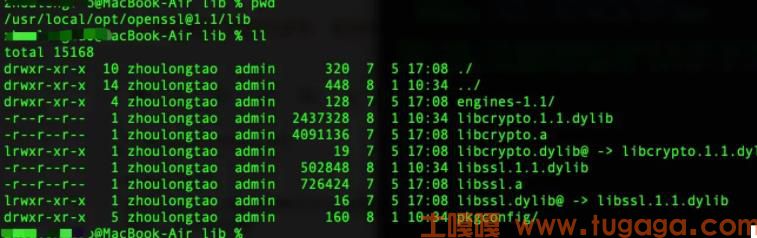

例：mac

安装教程

解压进入openssl-ext-sm2目录

cd openssl-ext-sm2-master

phpize

检查依赖

./configure --with-openssl=/usr/local/openssl@1.1

检查结果

[lilunx openssl-ext-sm2]$ ./configure --with-openssl=/usr/local/openssl@1.1

checking for grep that handles long lines and -e... /usr/bin/grep

checking for egrep... /usr/bin/grep -E

checking for a sed that does not truncate output... /usr/bin/sed

checking for cc... cc

checking whether the C compiler works... yes

checking for C compiler default output file name... a.out

checking for suffix of executables...

checking whether we are cross compiling... no

checking for suffix of object files... o

checking whether we are using the GNU C compiler... yes

checking whether cc accepts -g... yes

checking for cc option to accept ISO C89... none needed

checking how to run the C preprocessor... cc -E

checking for icc... no

checking for suncc... no

checking whether cc understands -c and -o together... yes

checking for system library directory... lib

checking if compiler supports -R... no

checking if compiler supports -Wl,-rpath,... yes

checking build system type... x86_64-pc-linux-gnu

checking host system type... x86_64-pc-linux-gnu

checking target system type... x86_64-pc-linux-gnu

checking for PHP prefix... /usr/local/php

checking for PHP includes... -I/usr/local/php/include/php -I/usr/local/php/include/php/main -I/usr/local/php/include/php/TSRM -I/usr/local/php/include/php/Zend -I/usr/local/php/include/php/ext -I/usr/local/php/include/php/ext/date/lib

checking for PHP extension directory... /usr/local/php/lib/php/extensions/no-debug-non-zts-20180731

checking for PHP installed headers prefix... /usr/local/php/include/php

checking if debug is enabled... no

checking if zts is enabled... no

checking for re2c... no

configure: WARNING: You will need re2c 0.13.4 or later if you want to regenerate PHP parsers.

checking for gawk... gawk

checking for OpenSSL support... yes, shared

checking for Kerberos support... no

checking whether to use system default cipher list instead of hardcoded value... no

checking whether to enable sm2 support... yes, shared

checking for RAND_egd... no

checking for pkg-config... /usr/bin/pkg-config

checking for OpenSSL version... >= 1.0.1

checking for CRYPTO_free in -lcrypto... yes

checking for SSL_CTX_set_ssl_version in -lssl... yes

checking for ld used by cc... /usr/bin/ld

checking if the linker (/usr/bin/ld) is GNU ld... yes

checking for /usr/bin/ld option to reload object files... -r

checking for BSD-compatible nm... /usr/bin/nm -B

checking whether ln -s works... yes

checking how to recognize dependent libraries... pass_all

checking for ANSI C header files... yes

checking for sys/types.h... yes

checking for sys/stat.h... yes

checking for stdlib.h... yes

checking for string.h... yes

checking for memory.h... yes

checking for strings.h... yes

checking for inttypes.h... yes

checking for stdint.h... yes

checking for unistd.h... yes

checking dlfcn.h usability... yes

checking dlfcn.h presence... yes

checking for dlfcn.h... yes

checking the maximum length of command line arguments... 1572864

checking command to parse /usr/bin/nm -B output from cc object... ok

checking for objdir... .libs

checking for ar... ar

checking for ranlib... ranlib

checking for strip... strip

checking if cc supports -fno-rtti -fno-exceptions... no

checking for cc option to produce PIC... -fPIC

checking if cc PIC flag -fPIC works... yes

checking if cc static flag -static works... no

checking if cc supports -c -o file.o... yes

checking whether the cc linker (/usr/bin/ld -m elf_x86_64) supports shared libraries... yes

checking whether -lc should be explicitly linked in... no

checking dynamic linker characteristics... GNU/Linux ld.so

checking how to hardcode library paths into programs... immediate

checking whether stripping libraries is possible... yes

checking if libtool supports shared libraries... yes

checking whether to build shared libraries... yes

checking whether to build static libraries... no

creating libtool

appending configuration tag "CXX" to libtool

configure: creating ./config.status

config.status: creating config.h

config.status: config.h is unchanged

安装编译

make&&make install

修改php.ini

extension="sm2.so"

重启php-fpm或者apache

使用说明

1. 创建公钥和私钥

$pub_key 取地址 结果为二进制

$pri_key 取地址 结果为二进制

sm2_key_pair($pub_key, $pri_key);

返回值int 0 成功 其他状态失败

2. 签名

$msg 信息

$signature 输出签名结果

$pri_key 私钥 二进制

$iv userid 没有设置默认为空的操作：如需为空请设置1234567812345678

sm2_sign($msg, $signature, $pri_key, $iv)

返回值int 0 成功 其他状态失败

3. 验签

$msg 信息

$signature 输入签名结果

$pub_key 公钥 二进制

$iv userid 没有设置默认为空的操作：如需为空请设置1234567812345678

sm2_sign_verify($msg, $signature, $pub_key, $iv)；

返回值int 0 成功 其他状态失败

4. 公钥加密

$msg 信息

$encrypt 输出加密结果 二进制$pub_key 公钥 二进制

sm2_encrypt($msg, $encrypt, $pub_key)

返回值int 0 成功 其他状态失败

5. 私钥解密

$encrypt 加密信息 二进制

$string 输出结果 明文

$pri_key 私钥

sm2_decrypt($encrypt, $string, $pri_key)

返回值int 0 成功 其他状态失败

6. 演示

$msg = '这是测试';

$iv = '1234567812345678'; //没有设置默认为空的操作：如需为空请设置1234567812345678

sm2_key_pair($pub_key, $pri_key); base64_encode($pub_key); base64_encode($pri_key); #公钥:BHSAPGXtrHNxqJ3/b0+eNu2mdO0mpDfTGNJUMoEWpNpSL53Dw+YM/B/QT5OoLm4xQtw0hZY5wlWTR+cD629Grek=

#私钥:++BuzKd1mPa0RXAJcY6DHDq9SUzo3T6/engbKReQRqI=

sm2_sign($msg, $signature, $pri_key, $iv);

base64_encode($signature); #私钥签名:+YHNtKkXbsRSs2nk5amd/YNqsiH8Kyr+oyLVVzuvRl+lqb40uzPxjsRo9QTYw7kZdWSfvM5lbxDMfF0cugQNfQ==

sm2_sign_verify($msg, $signature, $pub_key, $iv);

#公钥验签:0

sm2_encrypt($msg, $encrypt, $pub_key); base64_encode($encrypt); #公钥加密:BBdm04Uh5EgzYKG3Ff8rBFJQZxRSXnrh9/WDZxS6PmzfnTDz0O0C115BPxMDfBNnOK5Ixs9kHTJPNSDoiHoiEmrnuotKN53rxnJtNd3MTbRjJOQ0sas9Kdktl1eHzj2/eseNaGh0LHZIOrBxAQ==

sm2_decrypt($encrypt, $string, $pri_key);

#私钥解密:这是测试

性能测试

纯php代码实现国密算法：https://learnku.com/articles/68557

服务器参数

物理cpu：2个

逻辑cpu：8个

cpu核数：4个

运行内存：8G

使用php框架：lumen

参与加密数据

{"request":{"body":{"ntbusmody":[{"busmod":"00001"}],"ntdumaddx1":[{"bbknbr":"75","dyanam":"招商

测试","dyanbr":"11111111111","eftdat":"20220602","inbacc":"755936020410404","ovrctl":"N","yurref":"596620626253316098"}]},"head":{"funcode":"NTDUMADD","reqid":"202206021511010000001","userid":"B000001631"}},"signature":{"sigdat":"__signature_sigdat__","sigtim":"20220602161503"}}

userid

1234567812345678

性能分析

关于执行次数：1000/100次是因为使用纯php服务器跑不了10000次。
